JawsMako::CRenderSpec Class Reference

A base class that describes base rendering properties common to all rendering operations. Not intended to be used directly. Instead, use instances of one of the subclasses that matches the rendering need. More...

#include <renderspec.h>

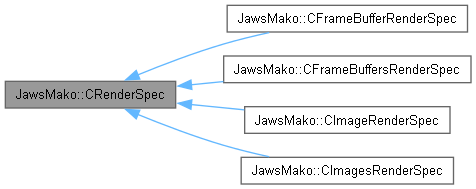

Inheritance diagram for JawsMako::CRenderSpec:

Public Types
enum	eBlackPreservation { eBPDefault = 0 , eBPOn = 1 , eBPOff = 2 }
	The possible types for enabling/controlling 100% black preservation. More...

Public Attributes
IDOMColorSpacePtr	processSpace
uint32	width
	The width, in pixels, of the result.
uint32	height
	The height, in pixels, of the result.
uint8	depth
	The depth, in bits (8 or 16), of the result.
FRect	sourceRect
	The source area of the DOM that will be mapped to the output width and height.
uint8	aaFactor
	The aaFactor to be used. 1 means no anti-aliasing. The maximum value is 4.
bool	alpha
	Whether or not alpha information should be produced.
CSpotColorNames	retainedSpotColors
	Spot components to generate as distinct separations/channels.
CSpotColorNames	ignoredSpotColors
	Spot components to ignore.
CSpotColorAliasVect	aliasedSpotColors
	Spot colorant aliases. Please see CSpotColorAlias for further information.
CRenderPostProcessVect	postProcesses
IOptionalContentPtr	optionalContent
	The optional content object for the document.
eOptionalContentEvent	optionalContentEvent
eRenderingIntent	rgbImageRenderingIntent
eRenderingIntent	cmykImageRenderingIntent
bool	ignoreInputIccProfiles
CColorManagerConfigPtr	overrideCmmConfig
	An optional CMM configuration override to apply to the given render.
bool	use16BitInternalRendering
eBlackPreservation	preserveBlackForText
	Whether or not to apply black preservation for text.
eBlackPreservation	preserveBlackForOther
	Whether or not to apply black preservation for non-text objects.

Detailed Description

A base class that describes base rendering properties common to all rendering operations. Not intended to be used directly. Instead, use instances of one of the subclasses that matches the rendering need.

Member Enumeration Documentation

eBlackPreservation

enum JawsMako::CRenderSpec::eBlackPreservation

The possible types for enabling/controlling 100% black preservation.

100% black preservation preserves a 100% black output when rendering when enabled for certain solid colors.

A 100% black object is an object painted with one of the following colors:

• 0 0 0 1 in any CMYK color space (including ICC)
• 0 0 0 in any RGB color space (including ICC)
• 0 in any Gray colorspace (including ICC)
• 1 in a single channel DeviceN (aka Separation) Black color space
• 1 in a multi-channel DeviceN colorspace where only the Black channel is set.

If black preservation applies then the resulting color will be either (depending on the target color space):

• c m y 1 in any CMYK colorspace (including ICC)
• 0 0 0 in any RGB colorspace (including ICC)
• 0 in any Gray colorspace (including ICC)

Note that the CMY values in a CMYK result may not be zero if color managed white conversion would not produce pure white.

Note also that where transparency is involved this conversion only applies when converting to the blending colorspace, and has no further effect for further conversions.

May be enabled separately for text and vector art. Applies to only solid color brushes (IDOMSolidColorBrush) and uncolored tiling patterns only.

The default is set by IColorManager::setDefaultBlackPreservation(), which defaults to false.

Enumerator
eBPDefault	Default behavior.
eBPOn	Use black point compensation if applicable during color conversion.
eBPOff	Do not use black point compensation during color conversion.

Member Data Documentation

cmykImageRenderingIntent

eRenderingIntent JawsMako::CRenderSpec::cmykImageRenderingIntent

The rendering intent to be used for cmyk images. If eRenderingIntentUnset, the DOM intent will be used.

ignoreInputIccProfiles

bool JawsMako::CRenderSpec::ignoreInputIccProfiles

If true, Gray, RGB and CMYK ICC profiles in the DOM will be ignored and instead be mapped to DeviceGray, DeviceRGB or DeviceCMYK as appropriate.

optionalContentEvent

eOptionalContentEvent JawsMako::CRenderSpec::optionalContentEvent

The type of optional content event to use when testing for the visibility of the optional content. If optionalContent is provided, this must not be eOCUnknown.

postProcesses

CRenderPostProcessVect JawsMako::CRenderSpec::postProcesses

A chain of post processing operations to be performed once rendering to the process space is complete. This can include tone curves, device simulation, spot merging/spot overprint simulation and/or preview generation. Please see IPostProcessSpec for further information.

processSpace

IDOMColorSpacePtr JawsMako::CRenderSpec::processSpace

The desired process color space for initial rendering. This describes the process space where compositing will occur

rgbImageRenderingIntent

eRenderingIntent JawsMako::CRenderSpec::rgbImageRenderingIntent

The rendering intent to be used for rgb images. If eRenderingIntentUnset, the DOM intent will be used.

use16BitInternalRendering

bool JawsMako::CRenderSpec::use16BitInternalRendering

If true, Apex will use 16 bit buffers for all intermediate rendering, even if the final output depth is 8 bits per sample. This can be especially useful if there are many colour conversion steps or a significant amount of overdrawing transparency compositing required.

This has no effect for 16 bit rendering.

---

The documentation for this class was generated from the following file:

• renderspec.h
