JawsMako::IInput Class Reference

Abstract input source that can open files from disk or a stream and create an IDocumentAssembly for the contents. More...

#include <jawsmako.h>

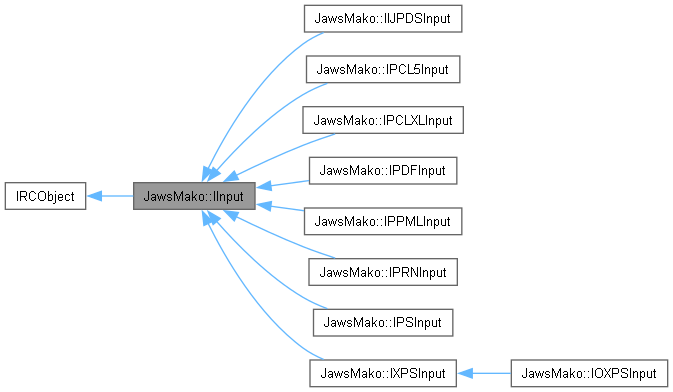

Inheritance diagram for JawsMako::IInput:

Public Member Functions
virtual IDocumentAssemblyPtr	open (const U8String &pathToFile)=0
	Open a file on disk, returning the IDocumentAssembly representing the contents.
virtual IDocumentAssemblyPtr	open (const String &pathToFile)=0
	Open a file on disk, returning the IDocumentAssembly representing the contents. Takes a wide character string.
virtual IDocumentAssemblyPtr	open (const IInputStreamPtr &inputStream)=0
	Open a stream, returning the IDocumentAssembly representing the contents.
virtual void	setSequentialMode (bool sequential)=0
	Set/unset sequential mode on this input.
virtual void	setParameter (const U8String &param, const U8String &value)=0
	Apply a key value pair output parameter with a string value. The parameter name is case-insensitive. Please refer to the supplied documentation for the details of the available parameters and their ranges.
Public Member Functions inherited from IRCObject
virtual void	addRef () const =0
	Increases the reference count of the actual object pointed to. This would take place during an assignment or copying.
virtual bool	decRef () const =0
	Decreases the reference count of the actual object pointed to. When the reference count falls to Zero, it deletes the actual object pointed to.
virtual int32	getRefCount () const =0
	Retrieve the current reference count of the actual object pointed to.

Static Public Member Functions
static JAWSMAKO_API IInputPtr	create (const IJawsMakoPtr &jawsMako, eFileFormat format, const IProgressMonitorPtr &progressMonitor=IProgressMonitorPtr())
	Create an input for reading source documents in the given format. The following formats are currently supported:

Additional Inherited Members
Protected Member Functions inherited from IRCObject
virtual	~IRCObject ()
	Virtual destructor.

Detailed Description

Abstract input source that can open files from disk or a stream and create an IDocumentAssembly for the contents.

Member Function Documentation

create()

static JAWSMAKO_API IInputPtr JawsMako::IInput::create ( const IJawsMakoPtr & jawsMako, eFileFormat format, const IProgressMonitorPtr & progressMonitor = IProgressMonitorPtr() )

static

Create an input for reading source documents in the given format. The following formats are currently supported:

• PDF
• XPS
• OpenXPS
• PCL5
• PCL/XL
• PostScript
• Encapsulated PostScript
• IJPDS
• PPML
• PRN

Parameters

jawsMako	A smart pointer to an IJawsMako object.
format	The file format of the input file.
progressMonitor	A smart pointer to an IProgressMonitor object which can be NULL if no object was passed.

Returns

IInputPtr The input

open() [1/3]

virtual IDocumentAssemblyPtr JawsMako::IInput::open ( const IInputStreamPtr & inputStream )

pure virtual

Open a stream, returning the IDocumentAssembly representing the contents.

Parameters

inputStream

The input stream to read from.

Returns

IDocumentAssemblyPtr the document assembly.

open() [2/3]

virtual IDocumentAssemblyPtr JawsMako::IInput::open ( const String & pathToFile )

pure virtual

Open a file on disk, returning the IDocumentAssembly representing the contents. Takes a wide character string.

Parameters

pathToFile

The path to the file to open.

Returns

IDocumentAssemblyPtr The document assembly.

open() [3/3]

virtual IDocumentAssemblyPtr JawsMako::IInput::open ( const U8String & pathToFile )

pure virtual

Open a file on disk, returning the IDocumentAssembly representing the contents.

Parameters

pathToFile

The path to the file to open.

Returns

IDocumentAssemblyPtr the document assembly.

setParameter()

virtual void JawsMako::IInput::setParameter ( const U8String & param, const U8String & value )

pure virtual

Apply a key value pair output parameter with a string value. The parameter name is case-insensitive. Please refer to the supplied documentation for the details of the available parameters and their ranges.

Parameters

param	Key
value	Value

setSequentialMode()

virtual void JawsMako::IInput::setSequentialMode ( bool sequential )

pure virtual

Set/unset sequential mode on this input.

The Mako APIs allow random access to pages for all input types. However some input formats, particularly PCL/5 do not lend themselves to efficient random access. An input may need to buffer up page information as it passes it in order to allow pages to be re-fetched or accessed in random order.

This API allows the user to hint to the input that pages will be accessed in sequential order and will not be re-requested. This may allow the input to use more memory efficient methods.

Should this mode be enabled and a page requested out of order, or re-requested, an exception may result. Also with this mode, do not used IDocument::getNumPages() or IDocumentAssembly::getNumDocuments(). Instead use an idiom, similar to the following, to advance through the documents and pages:

for (uint32 docNum = 0; ; docNum++)
{
    IDocumentPtr doc;

    try
    {
        doc = assembly->getDocument(docNum);
    }
    catch (IError &e)
    {
        if (e.getErrorCode() == JM_ERR_DOCUMENT_NOT_FOUND)
        {
            // No more documents
            break;
        }
        // Some other error
        throw;
    }

    for (uint32 pageNum = 0; ; pageNum++)
    {
        IPagePtr page;
        try
        {
            page = doc->getPage(pageNum);
        }
        catch (IError &e)
        {
            if (e.getErrorCode() == JM_ERR_PAGE_NOT_FOUND)
            {
                // No more pages
                break;
            }
            // Some other failure. Propagate.
            throw;
        }
    }
}

Note

Currently this mode is only implemented for PCL/5.

The default is false.

Parameters

sequential

Whether to use sequential mode.

---

The documentation for this class was generated from the following file:

• jawsmako.h
